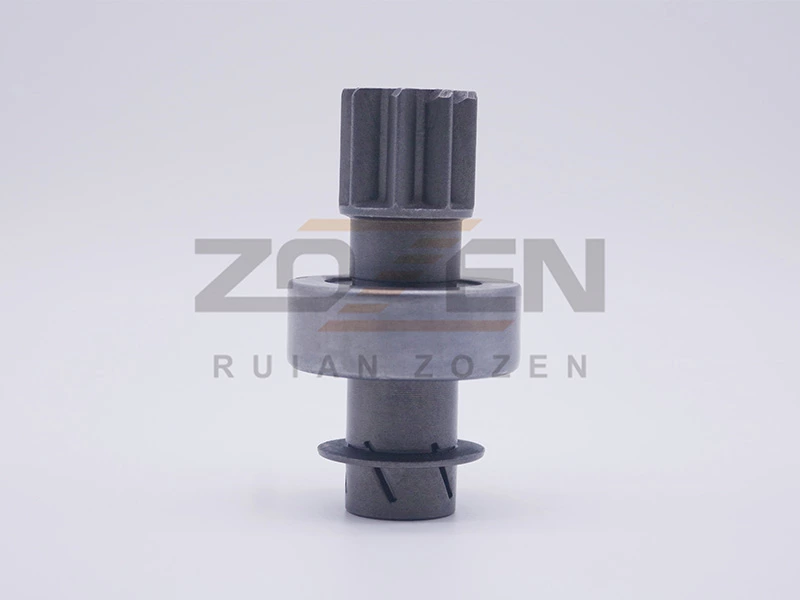

| DIMENSION | ||
| T | 9 | Number of pinion Teeth |
| D | 46.8 | Drive O.D.(mm) |
| G | 29.64 | Pinion O.D(mm) |
| ID | 12.5 | Pinion I.D.(mm) |
| L | 86 | Lenght(mm) |
| SPL | 10 | Number of Splines |
| ROTATION | CCW | |
| REF NO | APPLICATION |
| 283000830 283000831 283003320 283003321 2801187704 132545 |
Daihatsu:Especial/Special Subaru:A11 |
