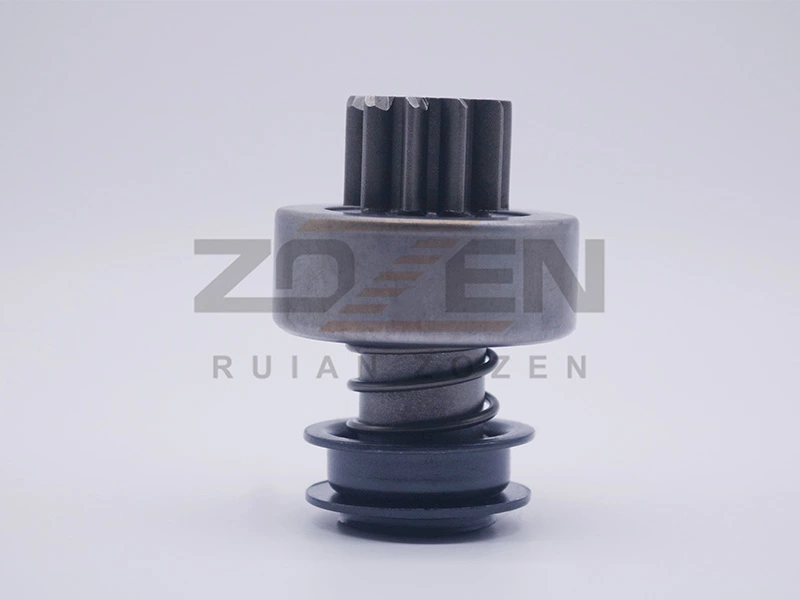

| DIMENSION | ||
| T | 10 | Number of pinion Teeth |
| D | 60 | Drive O.D.(mm) |
| G | 32.5 | Pinion O.D(mm) |
| ID | 14.1 | Pinion I.D.(mm) |
| L | 84.5 | Lenght(mm) |
| SPL | 12 | Number of Splines |
| ROTATION | CW | |
| REF NO | APPLICATION |
| 6468 6469 6570 6573 6585 6589 6590 6595 223787 10456455 10457056 10457579 D2053 133854 54-8406 |
Ford:F12000,F14000,F700 Diesel |
Recommended Products
Warmly welcome your arrival. We will povide best products and best after-sales service for you.If you have any questions, please contact us
TQS-165
DIMENSION T 8 Number of pinion Teeth D 45 Drive O.D.(mm) G 24.8 Pinion O.D(mm) ID 12.1 Pinion I.D.(m
TQS-161
DIMENSION T 8 Number of pinion Teeth D 41.5 Drive O.D.(mm) G 28 Pinion O.D(mm) ID 12.1 Pinion I.D.(m
TQS-160
DIMENSION T 8 Number of pinion Teeth D 41.5 Drive O.D.(mm) G 28 Pinion O.D(mm) ID 11 Pinion I.D.(mm)
TQS-159
DIMENSION T 10 Number of pinion Teeth D 60 Drive O.D.(mm) G 40 Pinion O.D(mm) ID 14.3 Pinion I.D.(mm
TQS-158
DIMENSION T 10 Number of pinion Teeth D 41.6 Drive O.D.(mm) G 27.7 Pinion O.D(mm) ID 12.1 Pinion I.D
TQS-157
DIMENSION T 8 Number of pinion Teeth D 41.6 Drive O.D.(mm) G 28 Pinion O.D(mm) ID 12.1 Pinion I.D.(m
