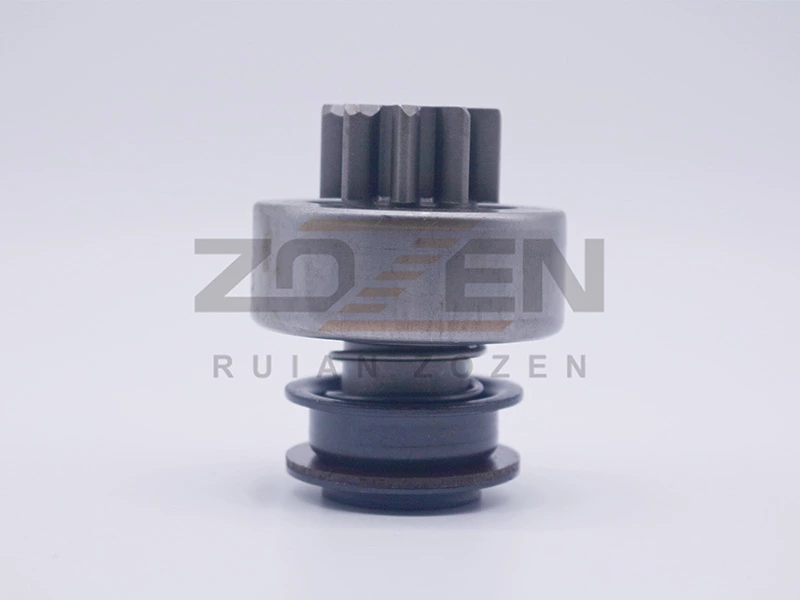

| DIMENSION | ||
| T | 9 | Number of pinion Teeth |
| D | 60 | Drive O.D.(mm) |
| G | 34.8 | Pinion O.D(mm) |
| ID | 14.3 | Pinion I.D.(mm) |
| L | 74 | Lenght(mm) |
| SPL | 10 | Number of Splines |
| ROTATION | CW | |
| REF NO | APPLICATION |
| 2006209449 2006209469 2006209485 2006209476 SD357 19024524 131019 54-9121 |
Alfa Romeo:Alfa6,Alfetta Fait:Magirus Iveco KHD:D2506, D3006,DX50V, F3L911,F3L912 Lamborghini:DT503-603,S503-603 Mercedes Benz:200D MWM:D225,D2262,D2263 Valmet:101,102,103 |
