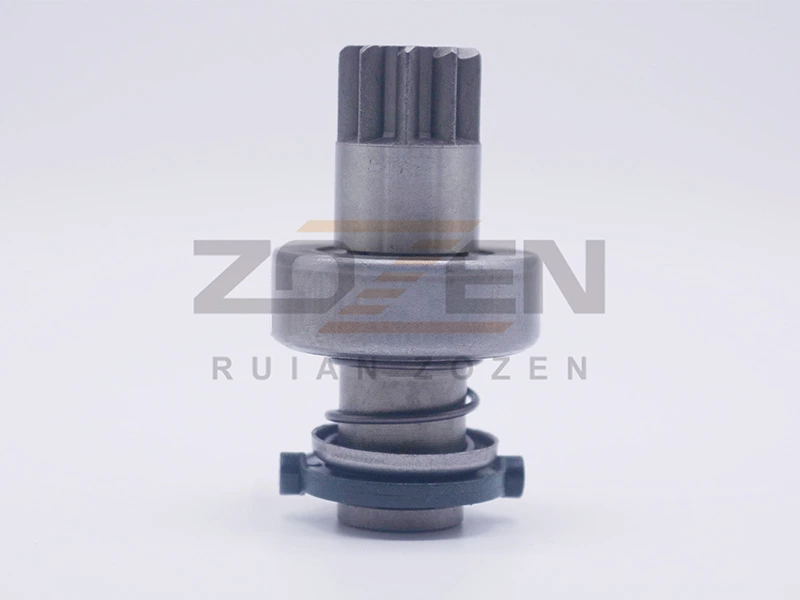

| DIMENSION | ||
| T | 9 | Number of pinion Teeth |
| D | 47.6 | Drive O.D.(mm) |
| G | 25.8 | Pinion O.D(mm) |
| ID | 11 | Pinion I.D.(mm) |
| L | 80.5 | Lenght(mm) |
| SPL | 16 | Number of Splines |
| ROTATION | CW | |
| REF NO | APPLICATION |
| 1006209641 1006209662 1006209761 1006209762 1006209781 138875 F000AL1186 F000AL1681 54-91123 |
Audi:911,Boxter,Q7 Seat:Arosa Skoda:Fabia Volkswagen:Gol,Lupo,Parati III,Quantum |
